产品参数
| Item-No. | TPP-50D | TPP-100D | TPP-200D |
| specified voltage | ~3N380V/50Hz | ~3N380V/50HZ | ~3N380V/50Hz |
| 权力 | 24KW/h | 48KW/h | 72kw/h |
| drive power | 2.5kw/h | 2.5kw/h | 2.5kw/h |
| temperature range | room temperature-400℃ | room temperature-400℃ | room temperature-300℃ |
| production | 50kg/h（e.g:bread) | 100kg/h（e.g:bread) | 200kg/h（e.g:bread) |
| grill size | 610*465*1450mm | 820*670*1700mm | 820*670*1700mm |
| grill layers | 16 layers*1=16tray | 16 layers*2=32tray | 16 layers*2+16 layers*2=64tray |
| overall size | 1750*1480*1950mm | 2000*1800*2200mm | 2600*2350*2300mm |
| 包装尺寸 | 1850*1580*2150mm | 2100*1900*2400mm | |
| net weight | 1000 千克 | 1300kg | 2000kg |
| 材料 | stainless steel | stainless steel | stainless steel |
| dish demension | 400*600 毫米 | 400*600 毫米 | 400*600 毫米 |
| Item-No. | TPP-50R | TPP-100R | TPP-200R |
| specified voltage | ~3N380V/50Hz | ~3N380V/50Hz | ~3N380V/50Hz |
| drive power | 2.5kw/h | 2.5kw/h | 2.5kw/h |
| temperature range | room temperature-400℃ | room temperature-400℃ | room temperature-300℃ |
| production | 50kg/h（e.g:bread) | 100kg/h（e.g:bread) | 200kg/h（e.g:bread) |
| grill size | 610*465*1450mm | 820*670*1700mm | 820*670*1700mm |
| grill layers | 16 layers×1=16tray | 16 layers×2=32tray | 16 layers×2+16 layers×2=64tray |
| overall size | 1750*1480*1950mm | 2000*1800*2200mm | 2600*2350*2300mm |
| 包装尺寸 | 1850*1580*2150mm | 2100*1900*2400mm | 2600*2350*2300mm |
| net weight | 1000 千克 | 1300kg | 2000kg |
| 材料 | stainless steel | stainless steel | stainless steel |
| dish demension | 400*600 毫米 | 400*600 毫米 | 400*600 毫米 |

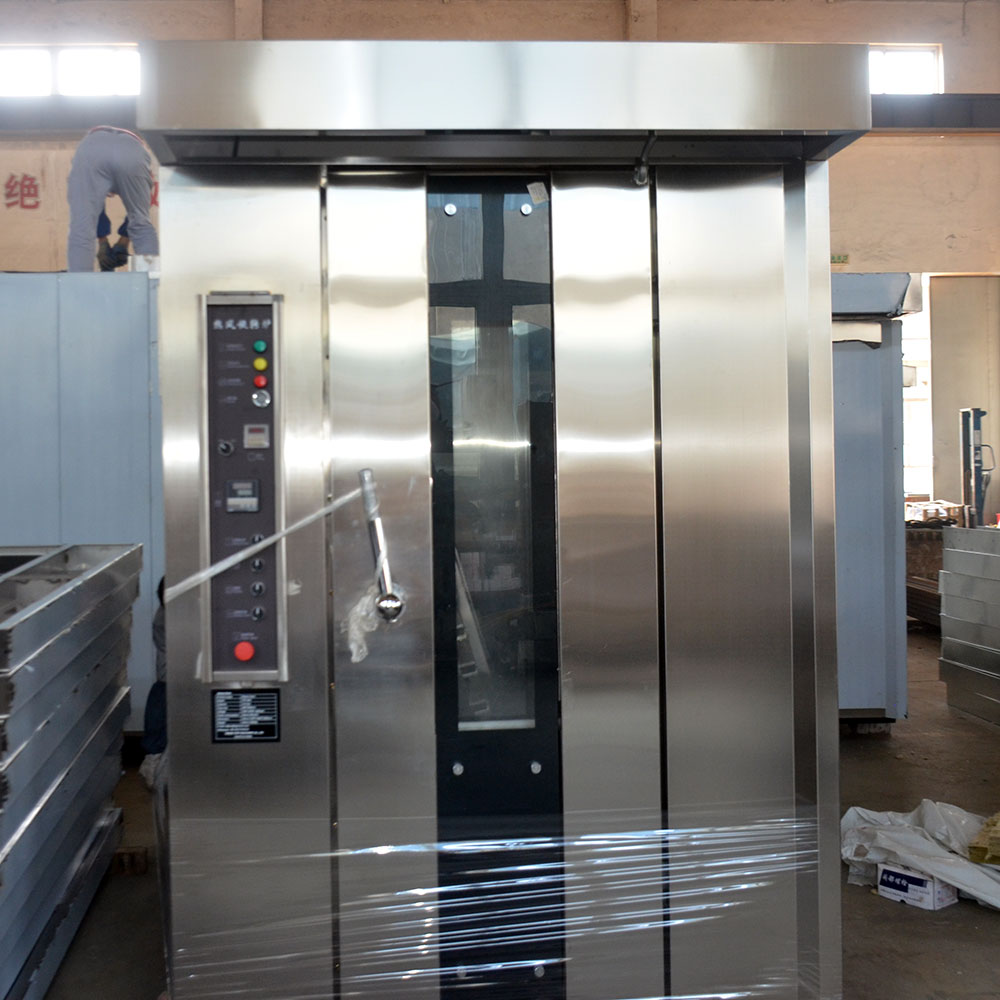

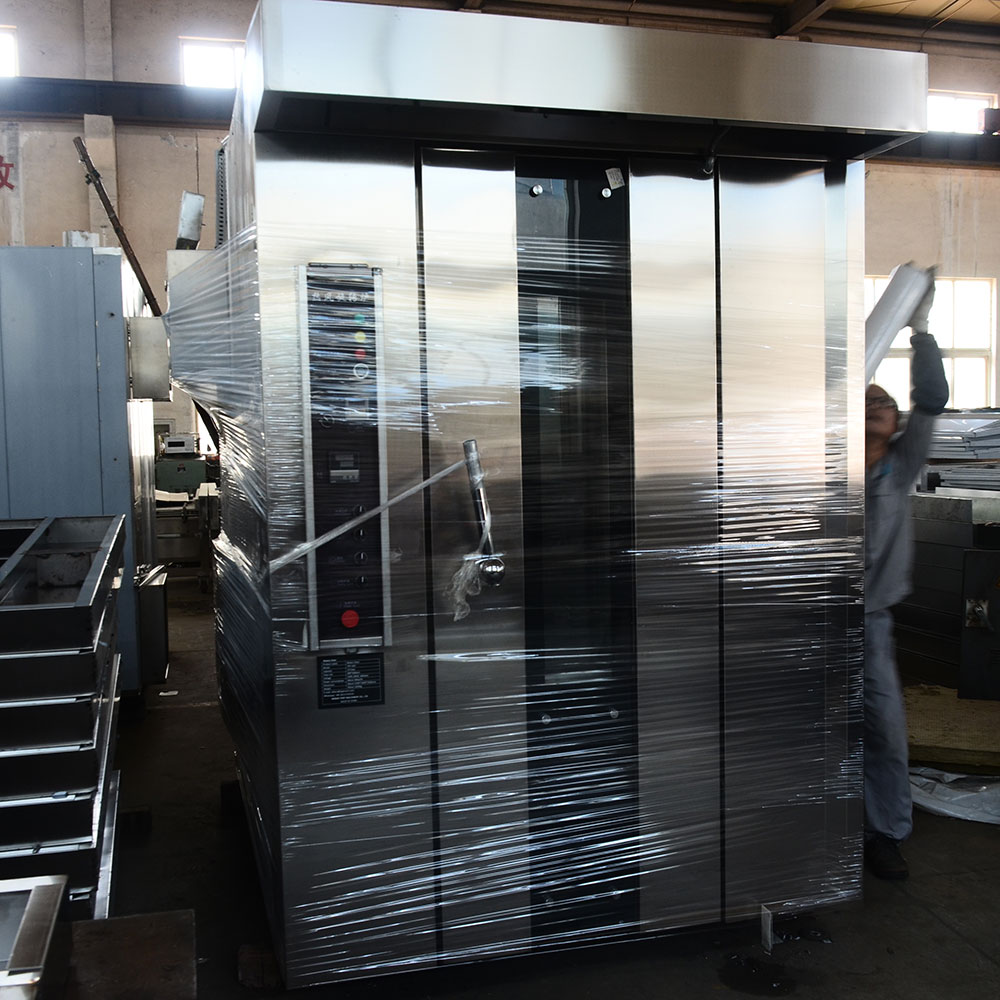

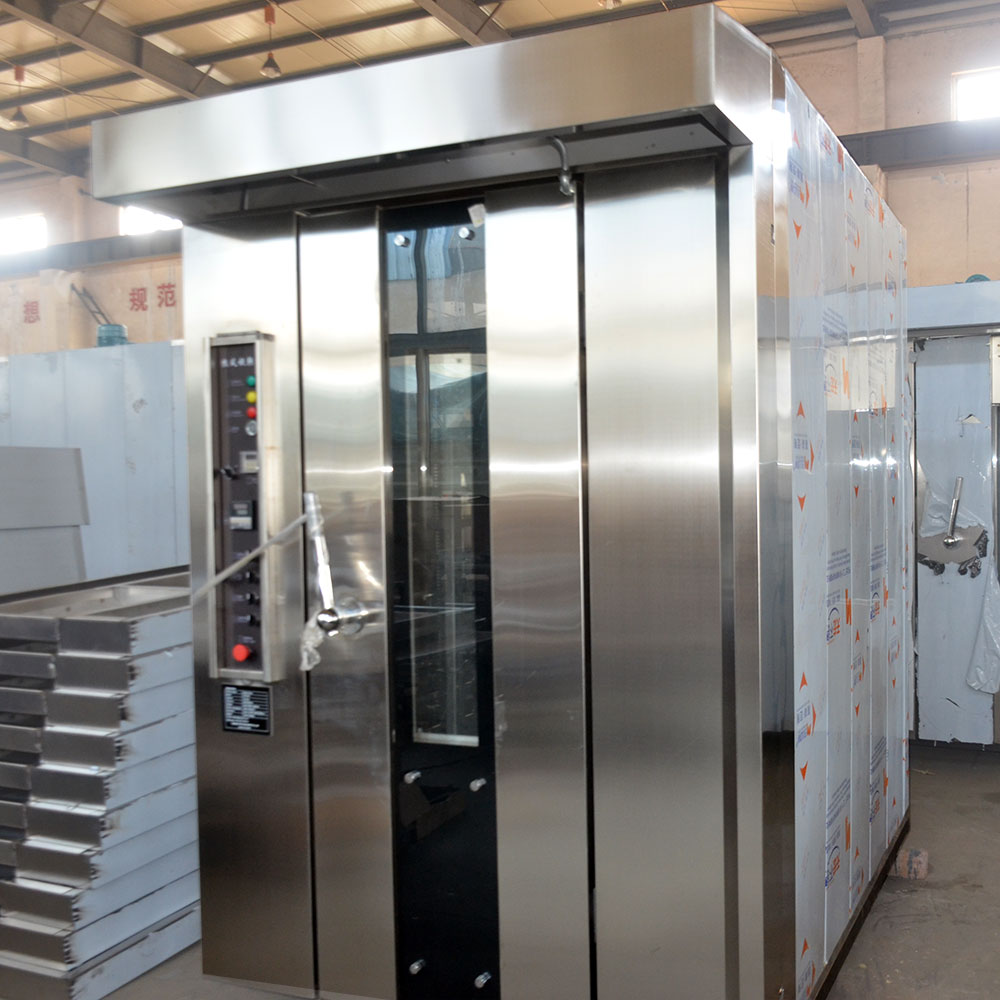

产品图片
