产品说明
Fully automatic liquid packaging machineWidely used in quantitative packaging of high-end liquids such as soy sauce, vinegar, liquor, milk, and various beverages. And it has been awarded a national patent for practical use.
It has the following characteristics:
1. The whole machine adopts single cam control, horizontal and vertical sealing double rod pull-back control heat sealing, more uniform pressure, more convenient operation, and simpler maintenance.
2. It can use a wide range of heat-sealing materials, and can heat and package various multi-layer composite films, black and white oxygen-barrier cling film, high-temperature cooking film, high-pressure polyethylene film and other heat-sealing materials.
3. The heat and temperature are controlled by a high-precision intelligent microcomputer instrument. It has three-side sealing (side sealing), back sealing, four-side sealing and other functions.
4. The film feeding system adopts ordinary film feeding method and touch film computer control. Photoelectric tracking, the pattern is more complete and more beautiful. And it can set and display the length used for adjustment, counting alarm device.
产品参数
| 模型 | TPP-YT500C |
| 能力 | 2500-3000bags/Hour |
| Filling volume | 100ml-250ml *2 |
| 权力 | 220v/380v 1.8kw |
| Film width | 90mm-150mm |
| 重量 | 450 千克 |
| 尺寸 | 1050*870*2100mm |

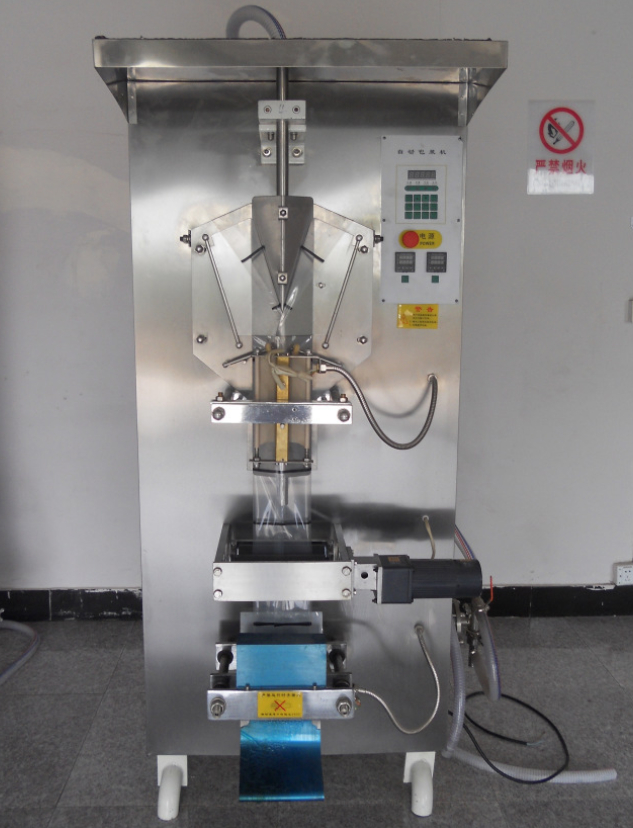

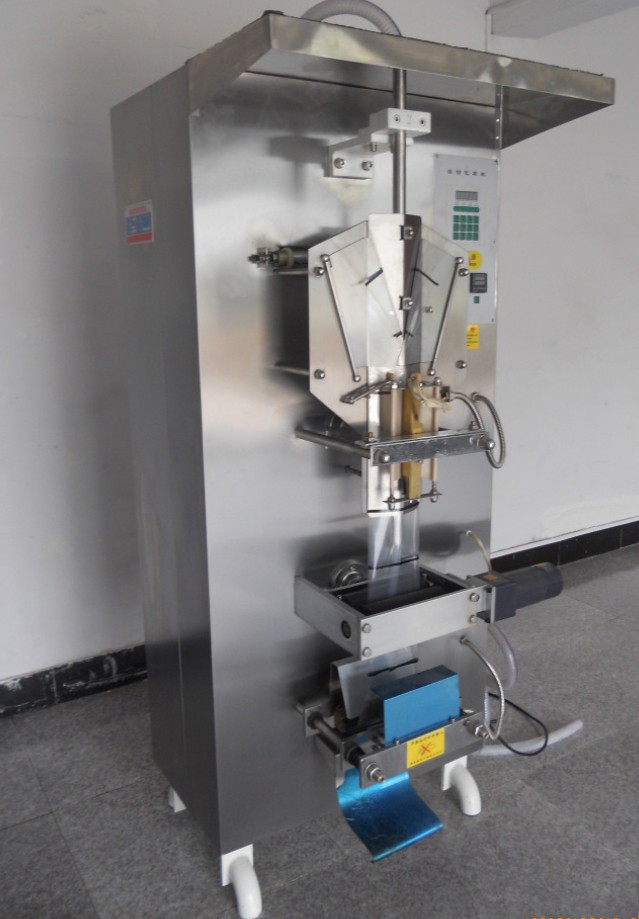

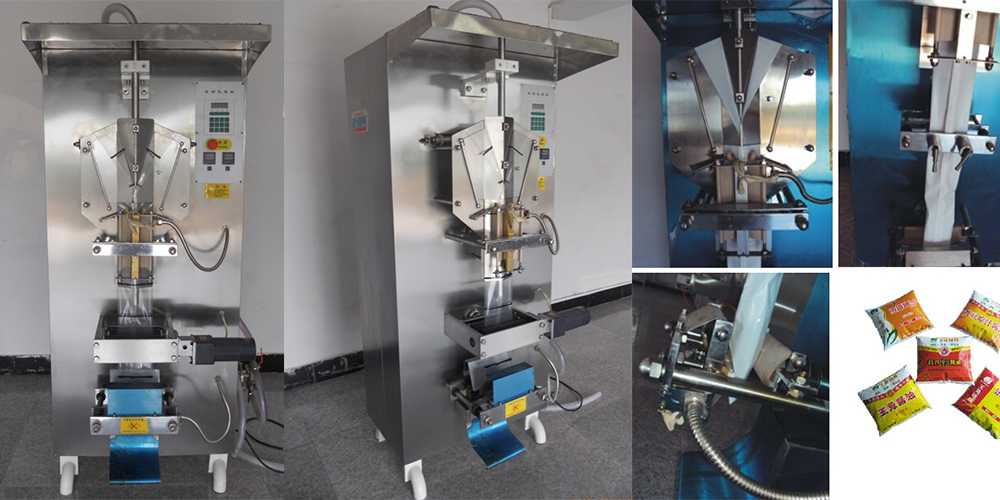

产品图片
