Introduction:
*This semi-automatic round bottle labeling machine is widely used in cylindrical object labeling, can realize full/half cycle labeling, single label and double label automatic switch.
*Optional positioning mechanism to achieve circular positioning labeling;
*High stability, good labeling effect, labeling accuracy ±0.5mm.
Technical Parameters
| model | TPP-TB2 |
| Suitable label size | 15mm-320mm(L); 10mm-180mm(W) |
| Suitable round bottle size | Diameter: φ15-φ150mm； |
| Suitable label roll size | Outer diameter: ≤φ280mm; inner diameter: ≤φ76mm |
| Labeling speed | 15-25pcs/Minute |
| Labeling precision | ±0.5mm |
| Air pressure | 0.4-0.7Mpa |
| Power | 250W, 220V,50Hz, 1phase |
| dimension | 1000*600mm*525mm |
| weight | About 45kg |

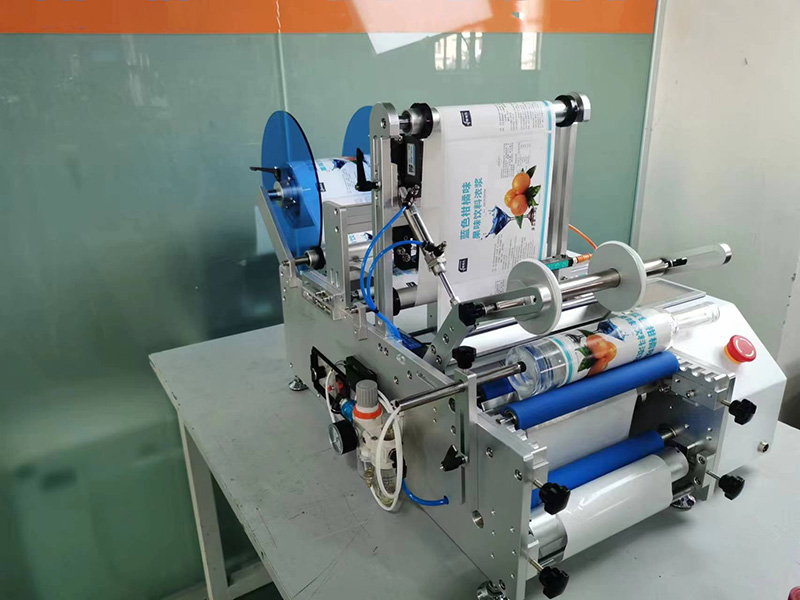

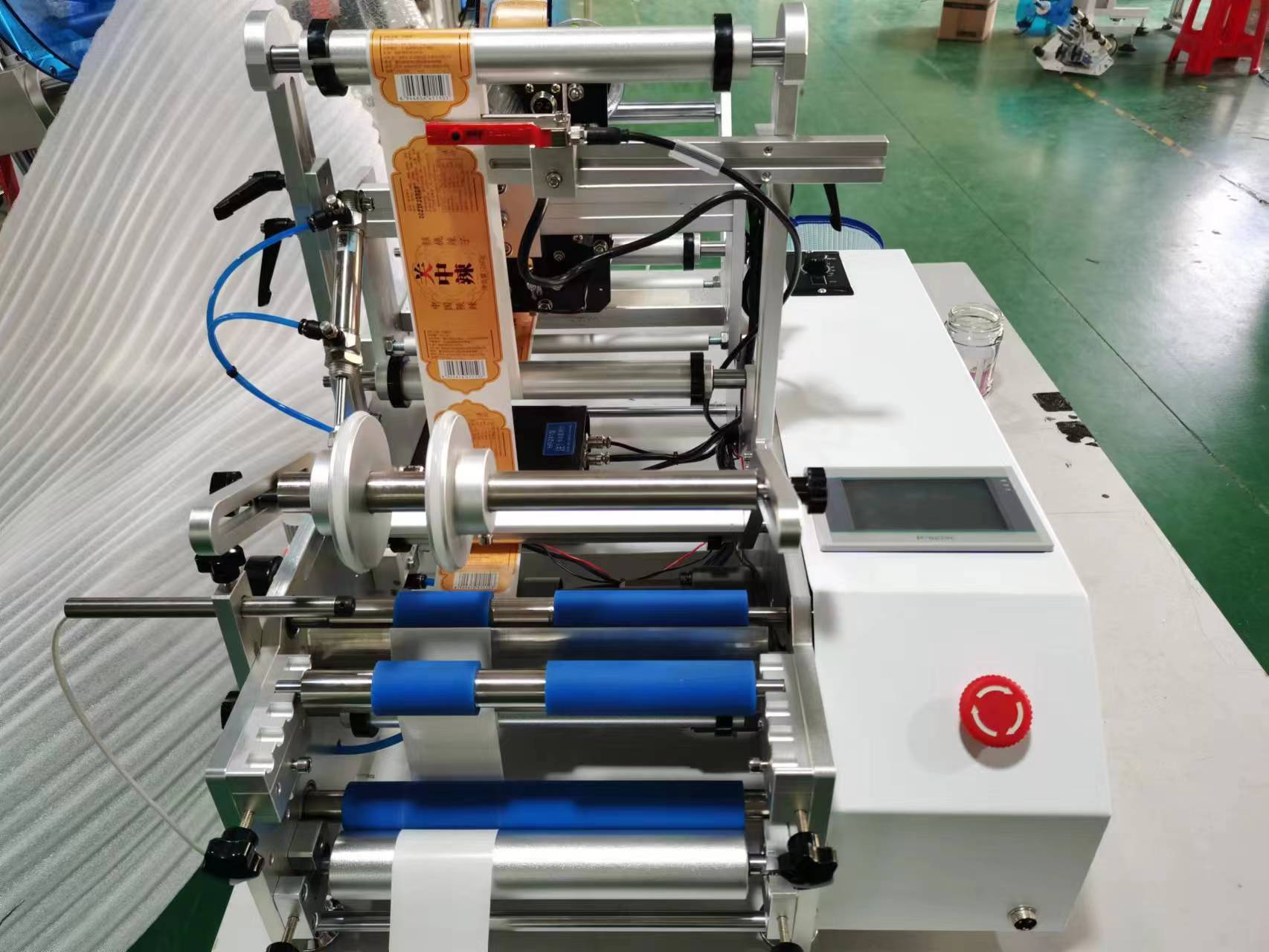

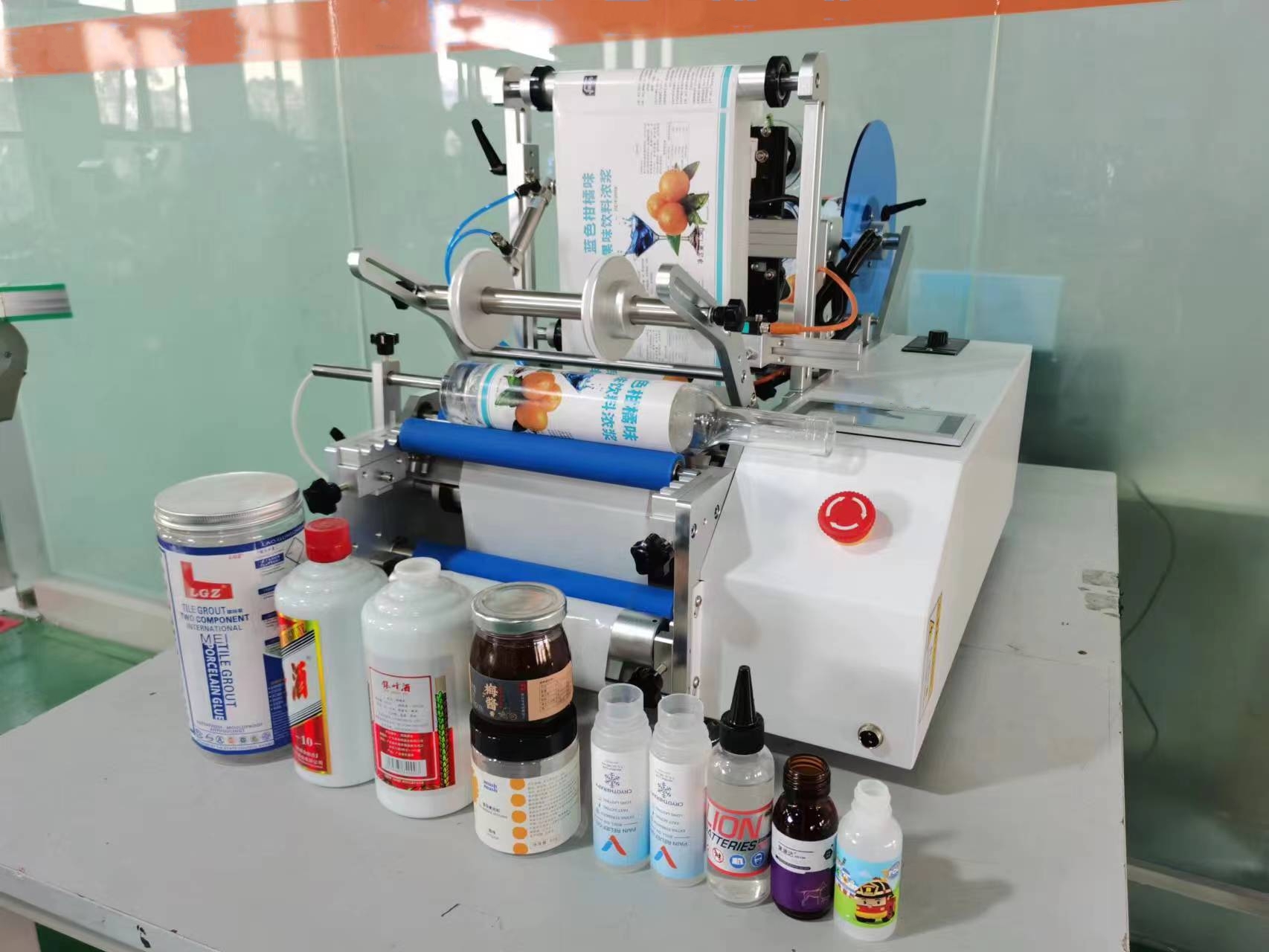

Product Details Pictures
