Hole Belt Type Mushroom Size Grading Machine

Product description

Introduction:

  1. This mushroom grading machine is including hole belt, support body and electric control cabinet.
  2. grading belt: the belt adopts food grade PVC.
  3. support body: the support body is made of stainless steel.
  4. electric control cabinets: the electric control part adopts variable frequency motor so that the sorting speed is adjustable.
  5. Drive mode: chain driving.

Product parameter

Model TPP-KDXG4
Capacity 0.7-1ton/hr
Grade quantity 4grades(3pcs sorting belts)
power 2.2kw
Voltage 380V/220V
Sorting belt width 700mm
dimension



 4100*1100*1080mm
weight About 400kg
Material Main part is made of SS201

Sorting belt is PVC(3mm thickness)

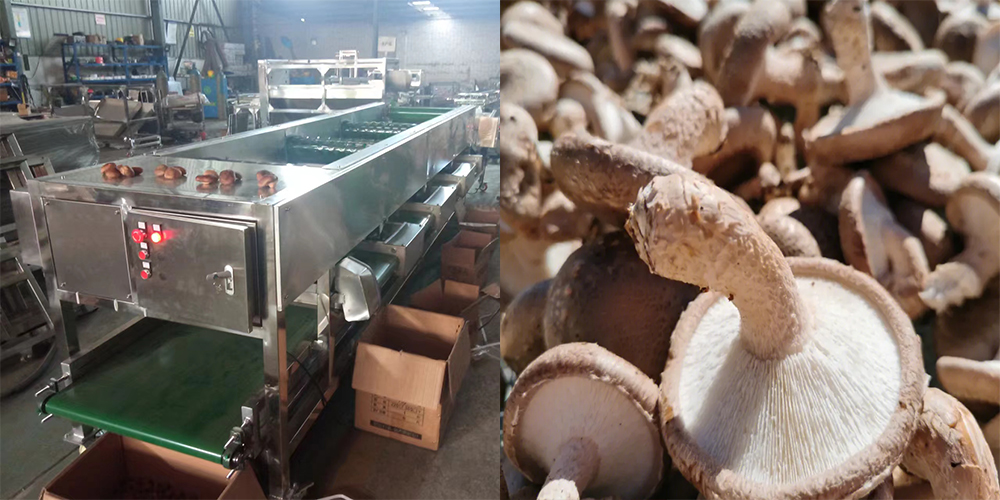

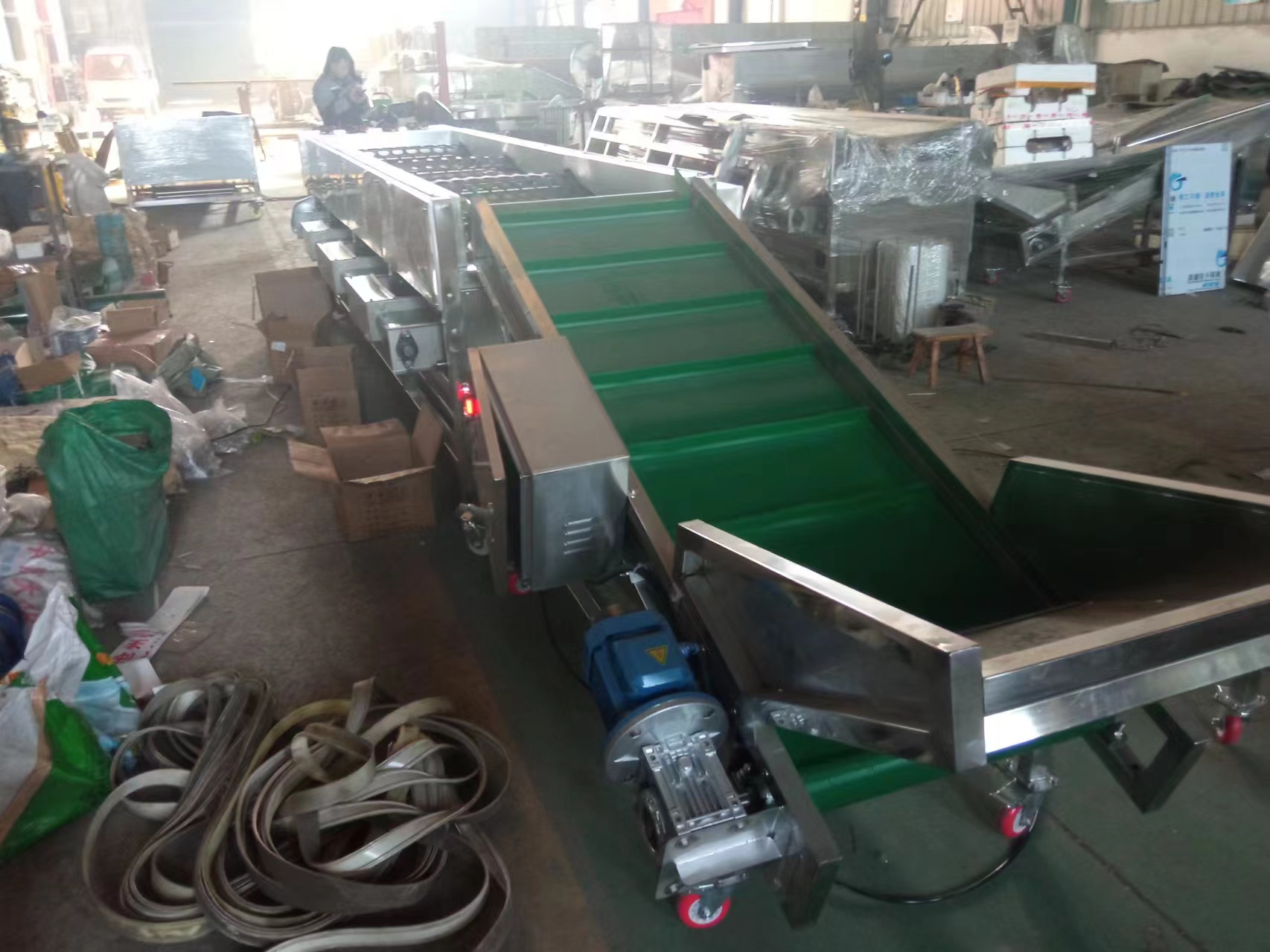

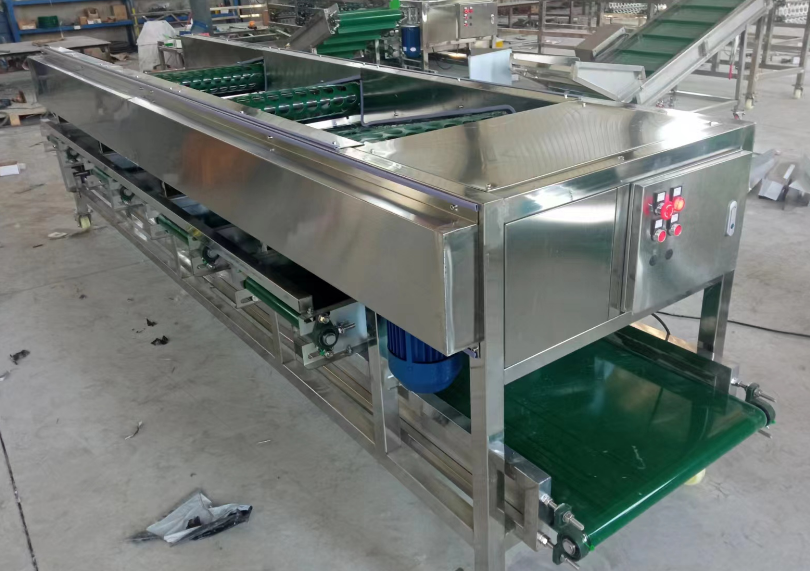

Product picture
