Hole Belt Type Garlic Size Grading Machine

Product description


Introduction:

  1. This machine is mainly suitable for sorting garlics and onions.
  2. This machine installs brush roller in each grade, which can effectively prevent garlic clogging the sorting holes.
  3. The sorting speed and discharging speed are adjustable.
  4. The front end of the discharging belt is designed with bagging device, and the garlic can be bagged directly after grading.
  5. The machine is with mobile casters, which is easy to move.
  6. Drive mode: shaft drive.

Product parameter


Model TPP-KDDS4
Capacity 3-5ton/hr
Grade quantity 4grades(3pcs sorting belts)
power 2.2kw
Voltage 380V/220V
Sorting belt width 800mm
dimension



3900*1450*1500mm
weight About 640kg
Material Main part is made of SS201

Sorting belt is PVC(3mm thickness)

Chain and chain wheel is 45# steel.

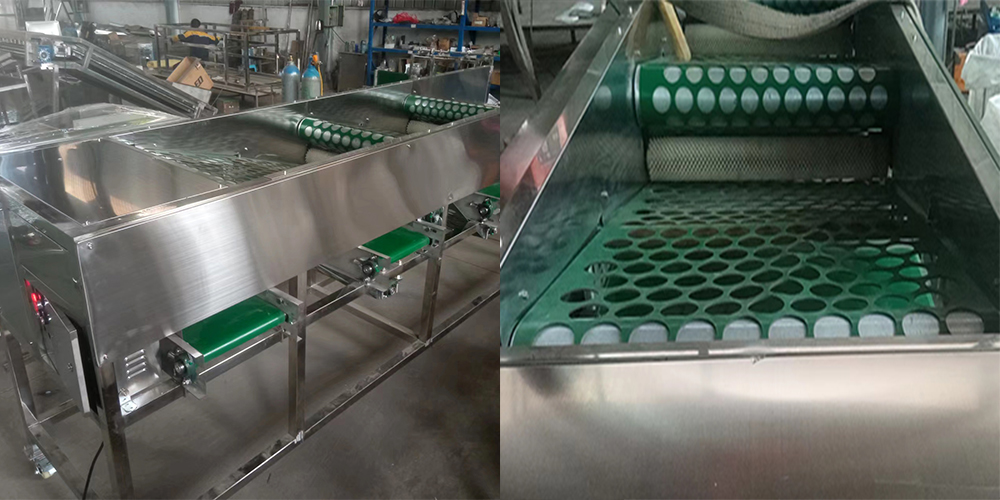

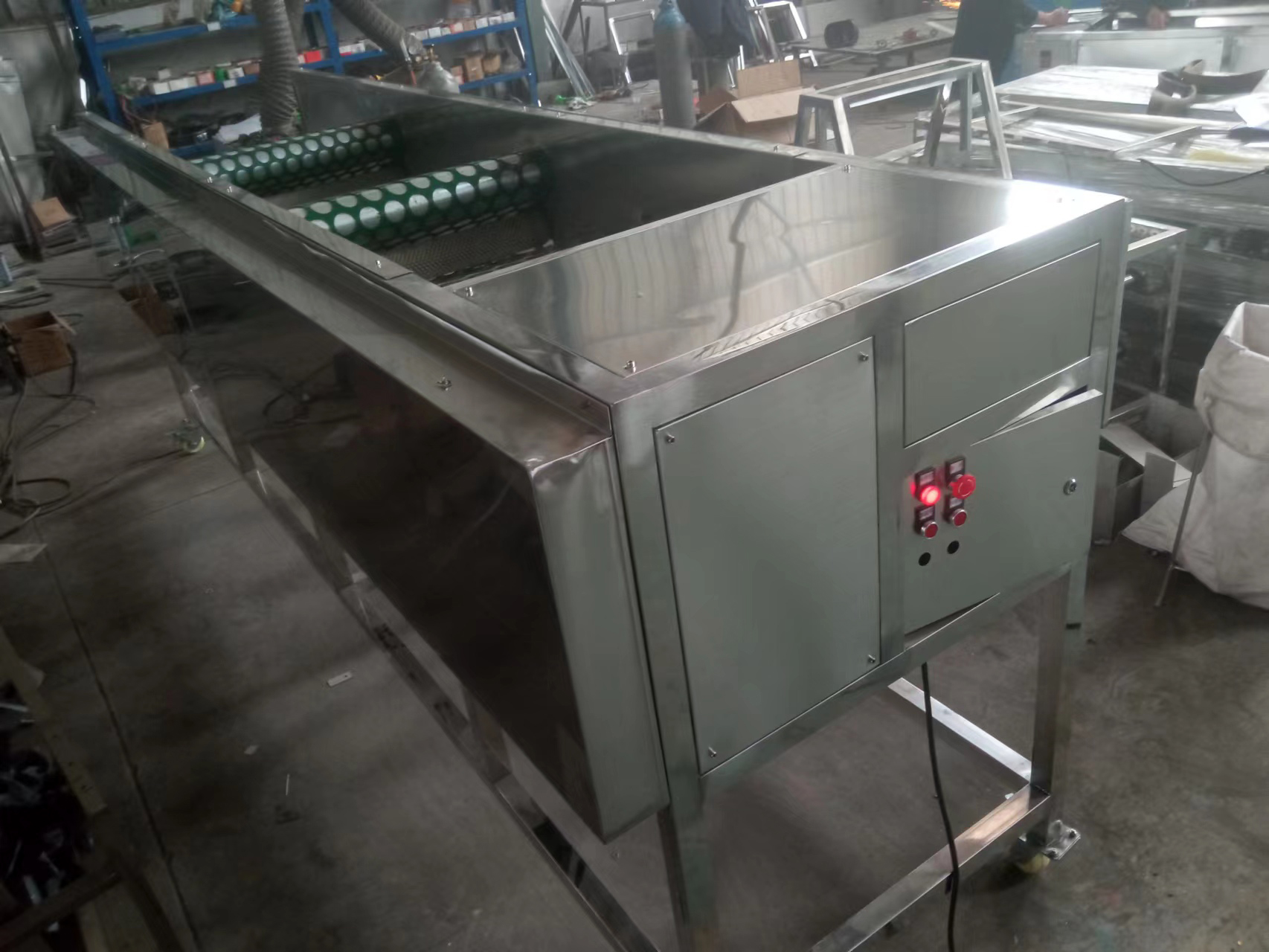

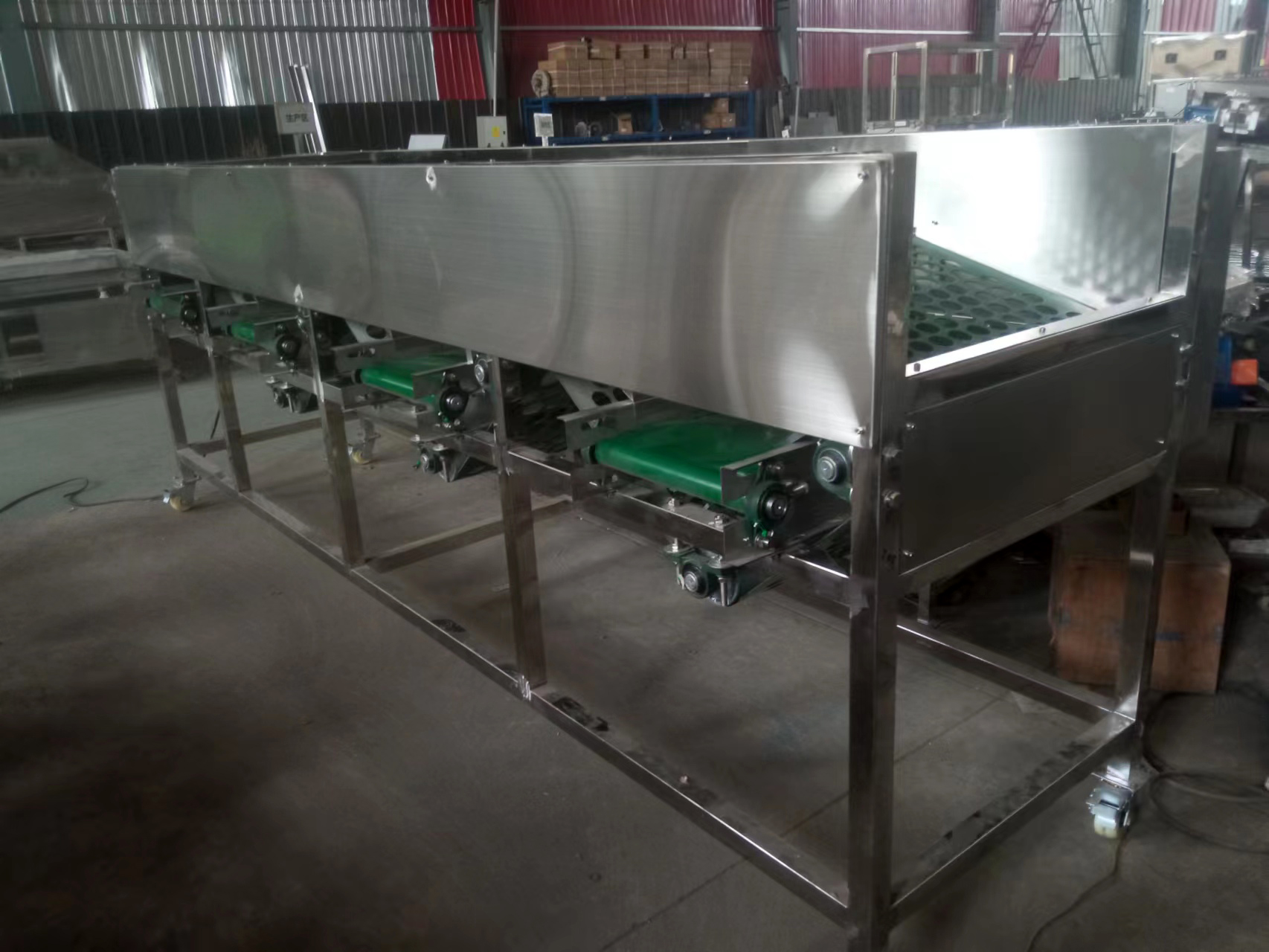

Product picture
