Fully-Automatic Wafer Production line

Product description

Adopting hearing-medium conduction technology with heating oil as medium,the plant is a new generation product developed exclusively in China based on the advanced structure of existing plants from domestic market and abroad.
If offers an ideal solution for lower power consumption and overall production cost,and keeping the same surface color for all biscuits.
The plant mainly consists of mixing system,automoatic feeding system, tunnel-type oven, sheet feeding and cooling device,coating machine,cutter and organic heating medium boiler, ect.
With compact structure and unique reliability, the plant is one of the most preferred equipments in foodstuff industry.

Product parameter

TPP-WH27 Wafer Biscuit Product line
Capacity: 100-150KG/H 2.5-3t/24h
NAME	QUANTITY	(kw)POWER	WEIGHT（kg）	(MM)SIZE

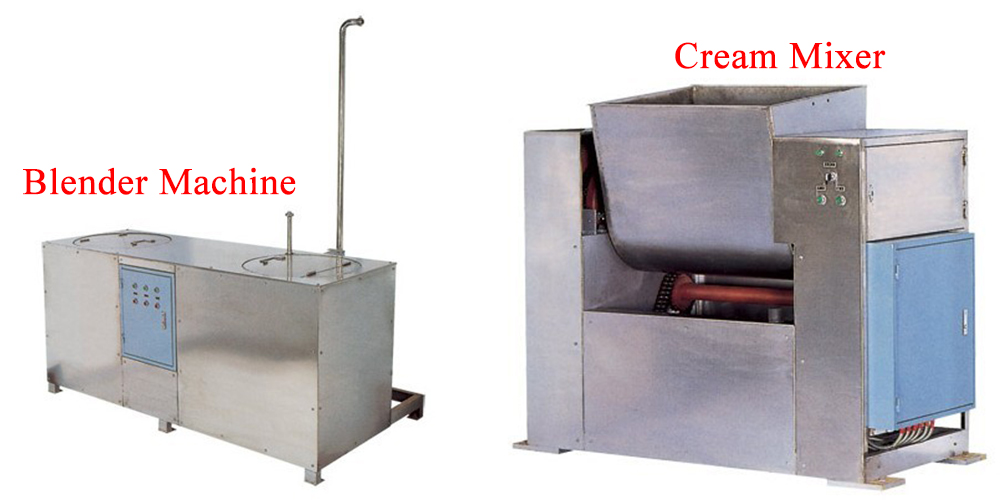

Blender Machine	1	3.75kw	200kg	1300660930mm
cream mixer	1	5.6kw	700kg	13707101400mm

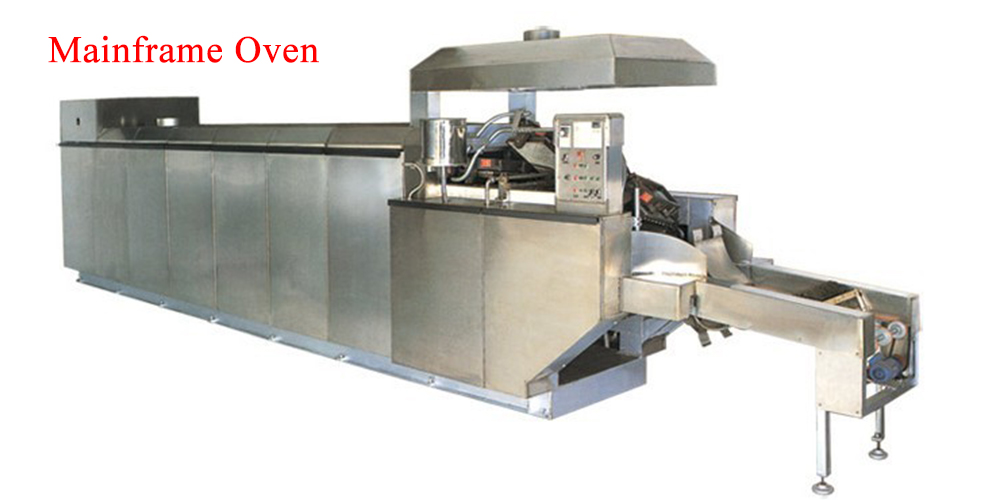

27 moulds electric oven	1	120kw	7700kg	554015602320mm
27-Motor Automatic Gas Flat Baker	1		8500kg	554015602320mm

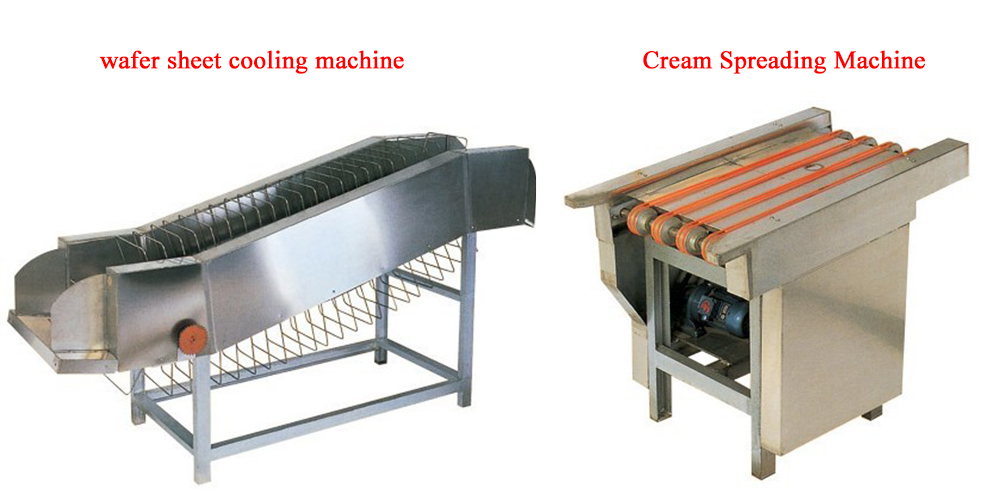

Wafer sheet cooling machine	1		130kg	24007301360mm
Cream spreading machine	1	3.05kw	750kg	370011401350mm

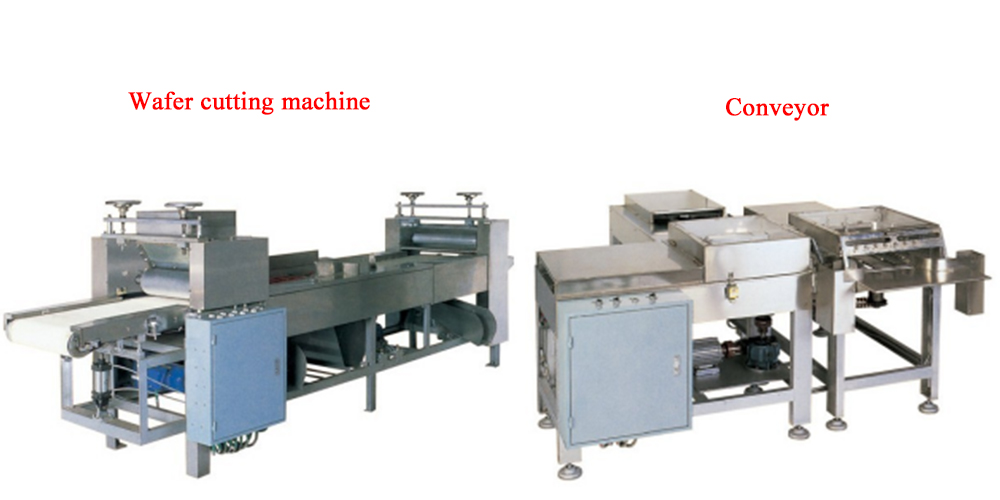

converyor	1	0.3kw	80kg	9507501050mm
Wafer cutting machine	1	0.75kw	500kg	22001300850mm

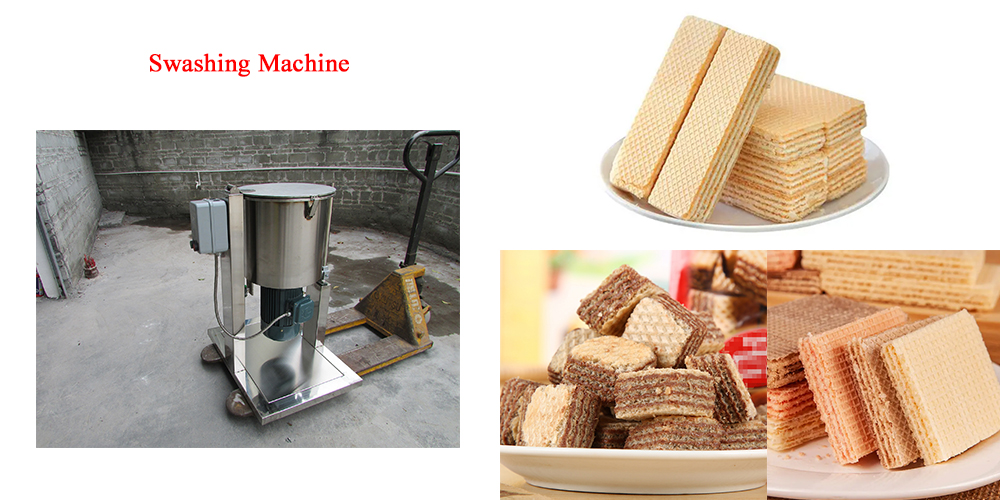

Crusher Machine	1	1.1kw	150kg	7107601270mm

Product picture
