Product description
Application:
This grading machine is suitable for blueberry and berry.
Introduction:
1, the equipment is mainly composed of grading hole-belt, discharge conveyor, frame, and control box.
2, grading hole-belt: industrial food grade PVC belt perforated, belt hole edge smooth, no damage to the surface of the blueberry.
3, frame body: frame body is made of stainless steel plate and stainless steel square pipe group welding.
4, Control box: adjustable speed variable frequency motor is used to control the sorting speed.
Product parameter
Width of hole belt 0.7m:
| model | grades | capacity | power | Dimension | weight |
| TPP-LM3B | 3 | 500-600kg/hr | 1.85kw,220V/380V | 3100*1200*820mm | 400kg |
| TPP-LM4B | 4 | 500-600kg/hr | 1.85kw,220V/380V | 4100*1200*820mm | 450KG |
| TPP-LM5B | 5 | 500-600kg/hr | 1.85kw,220V/380V | 5100*1200*820mm | 500kg |
Width of hole belt 0.9m:
| model | grades | capacity | power | Dimension | weight |
| TPP-LM3 | 3 | 800-1000kg/hr | 2.2kw,220V/380V | 3100*1500*820mm | 600kg |
| TPP-LM4 | 4 | 800-1000kg/hr | 2.2kw,220V/380V | 4100*1500*820mm | 680KG |
| TPP-LM5 | 5 | 800-1000kg/hr | 2.2kw,220V/380V | 5100*1500*820mm | 760kg |

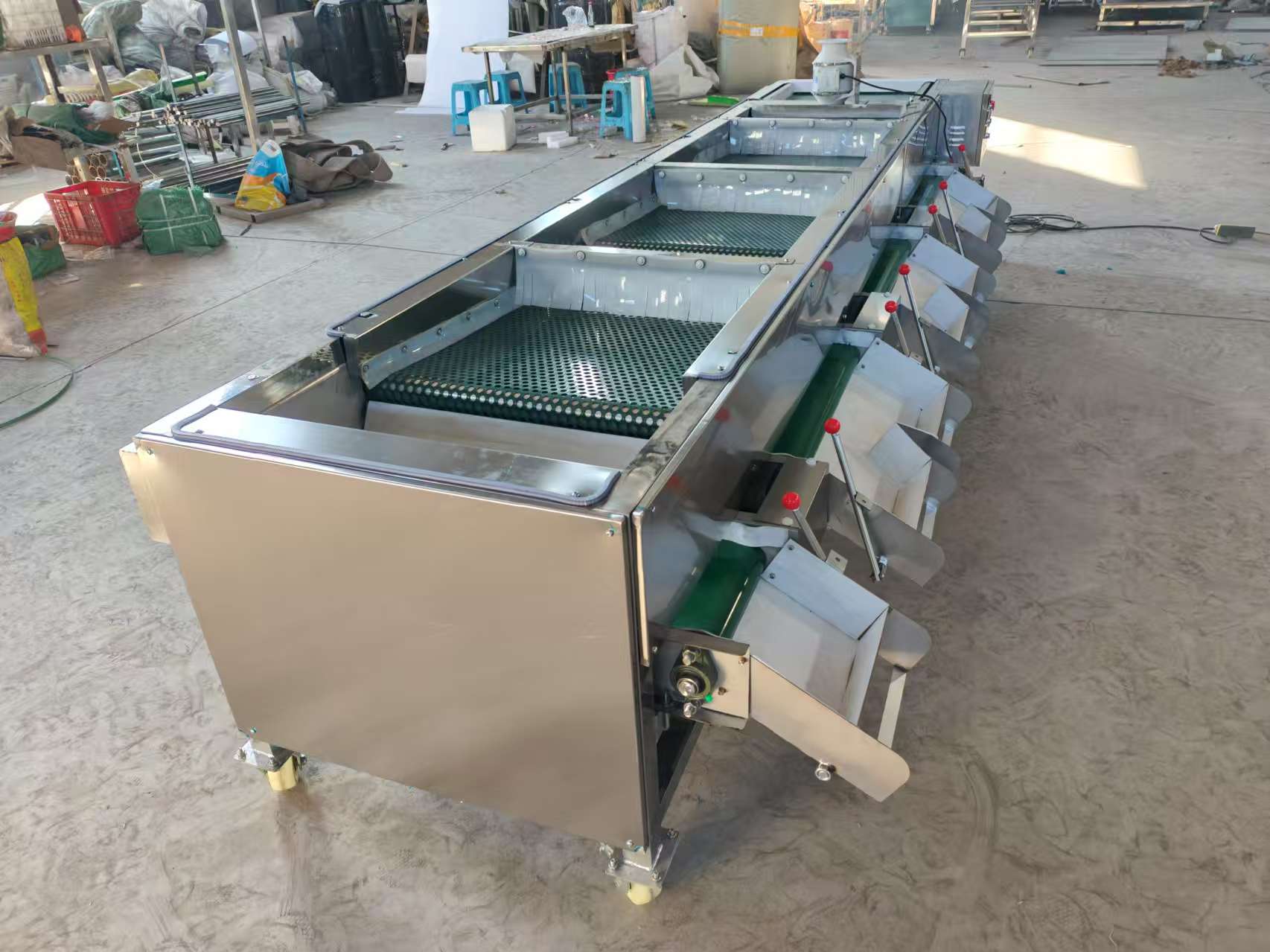

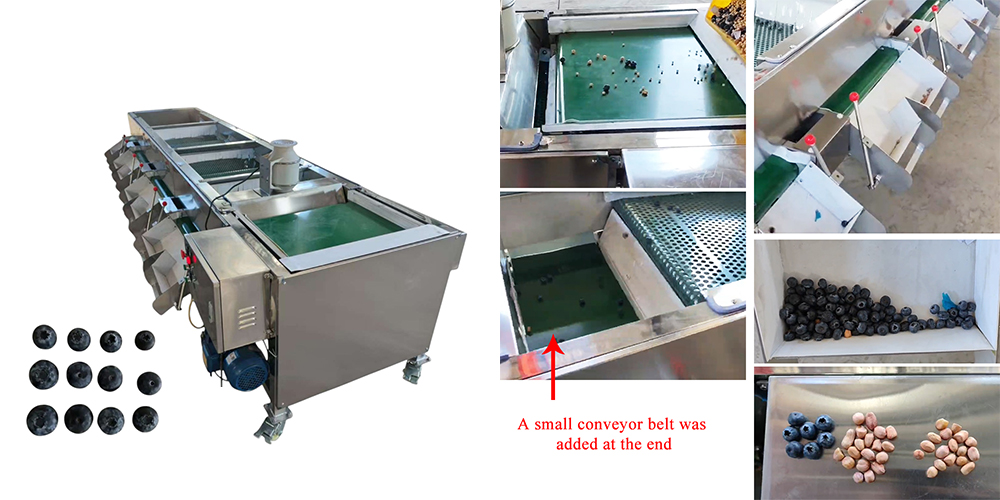

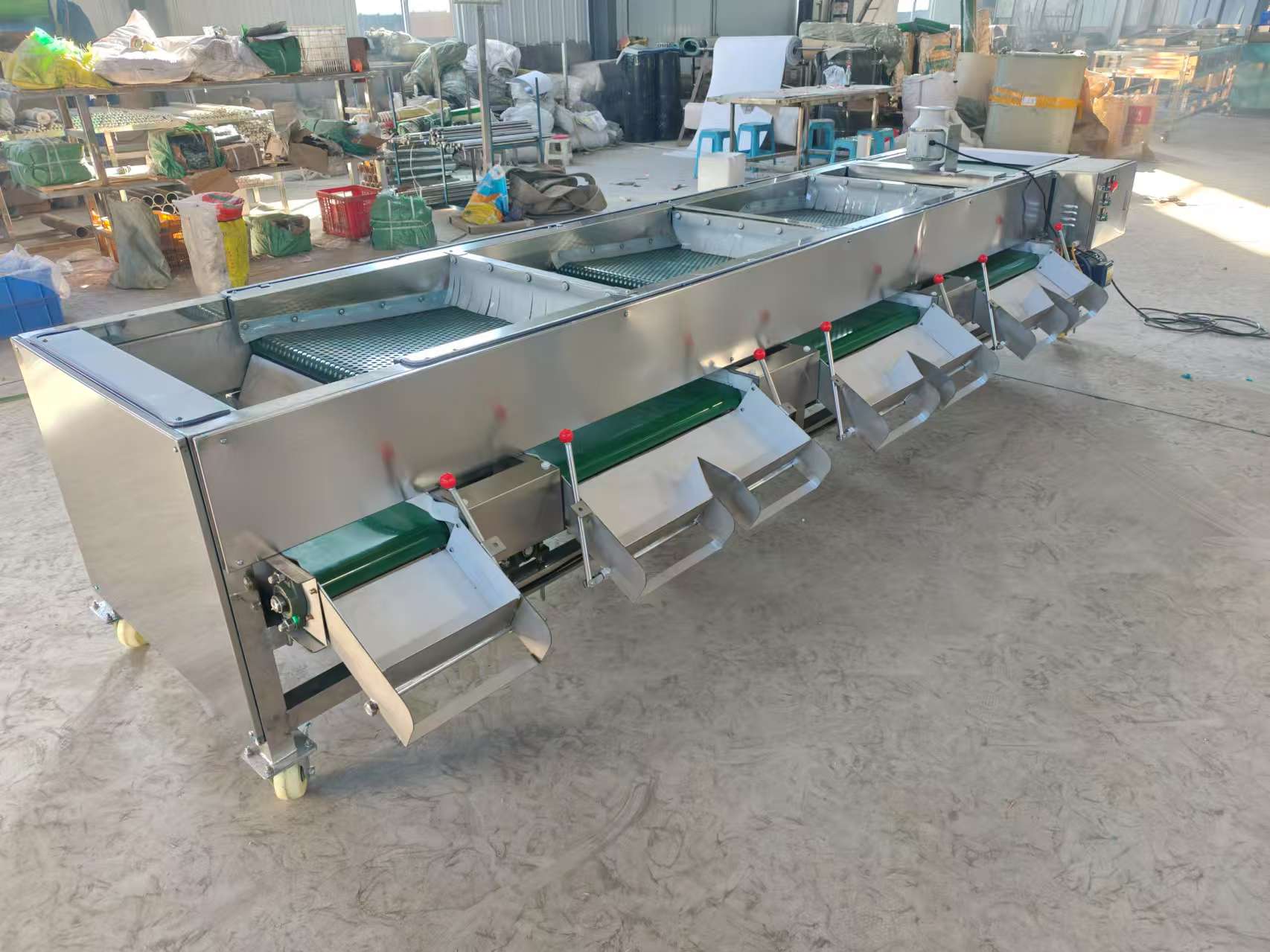

Product picture
