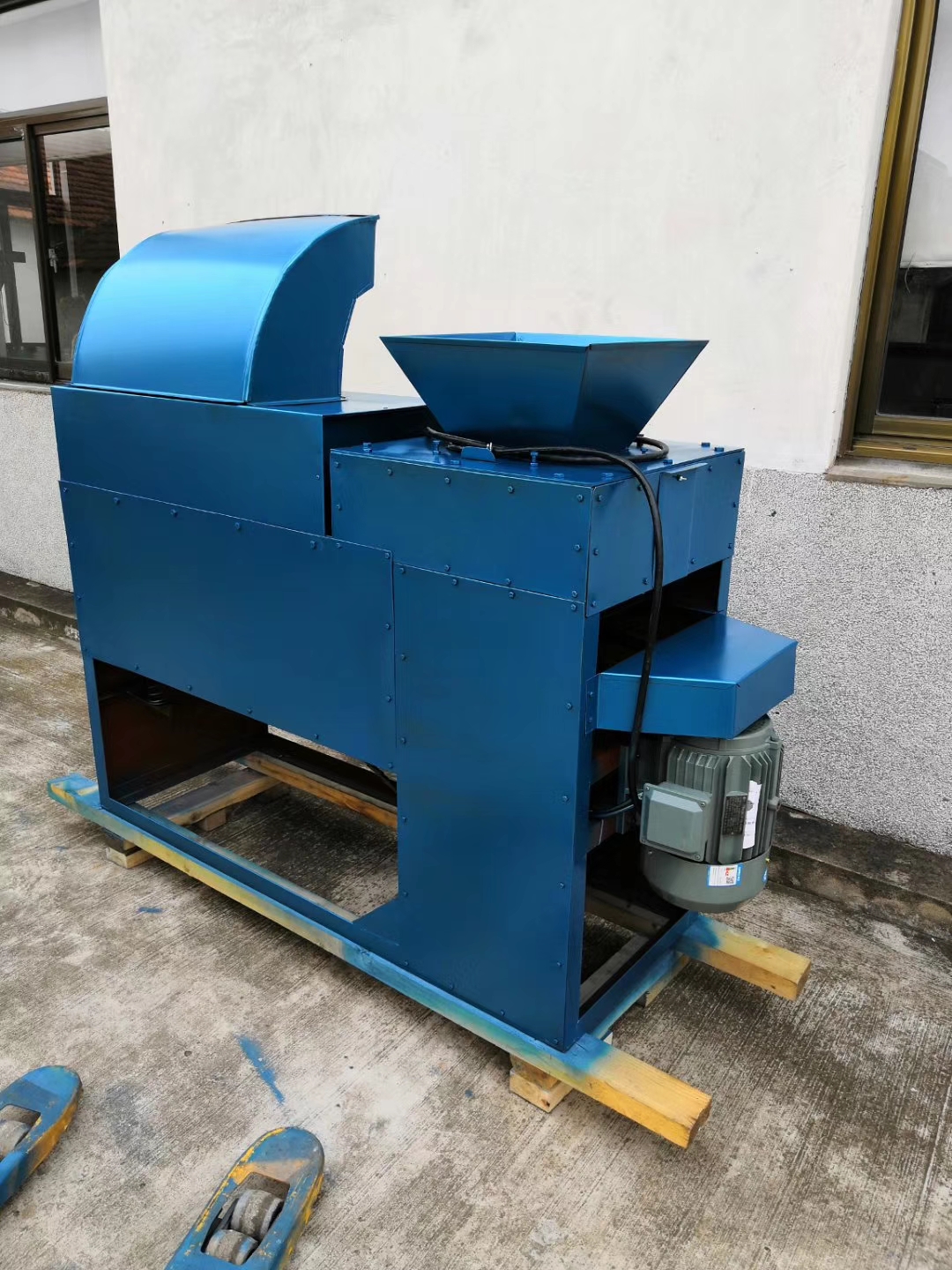

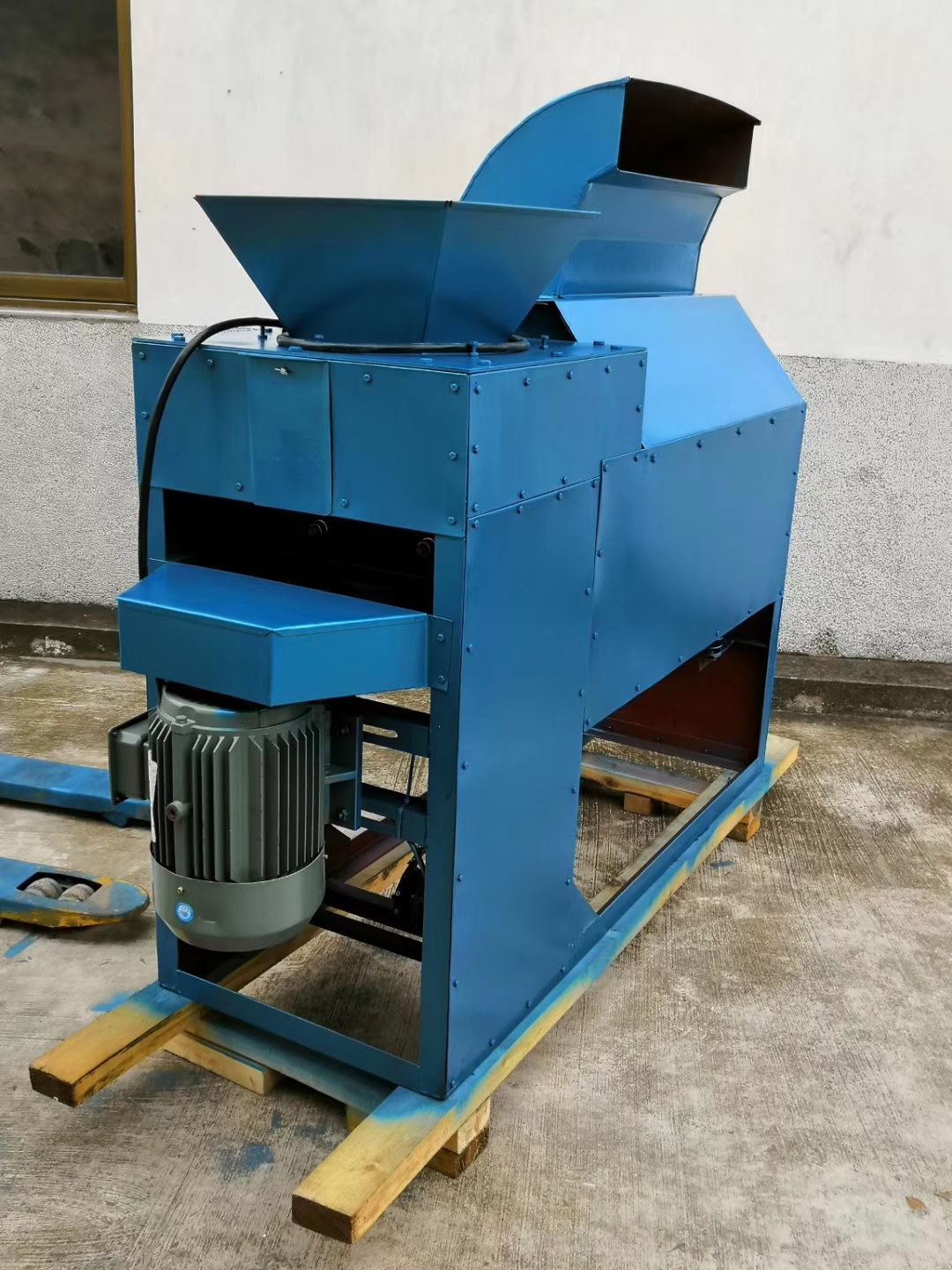

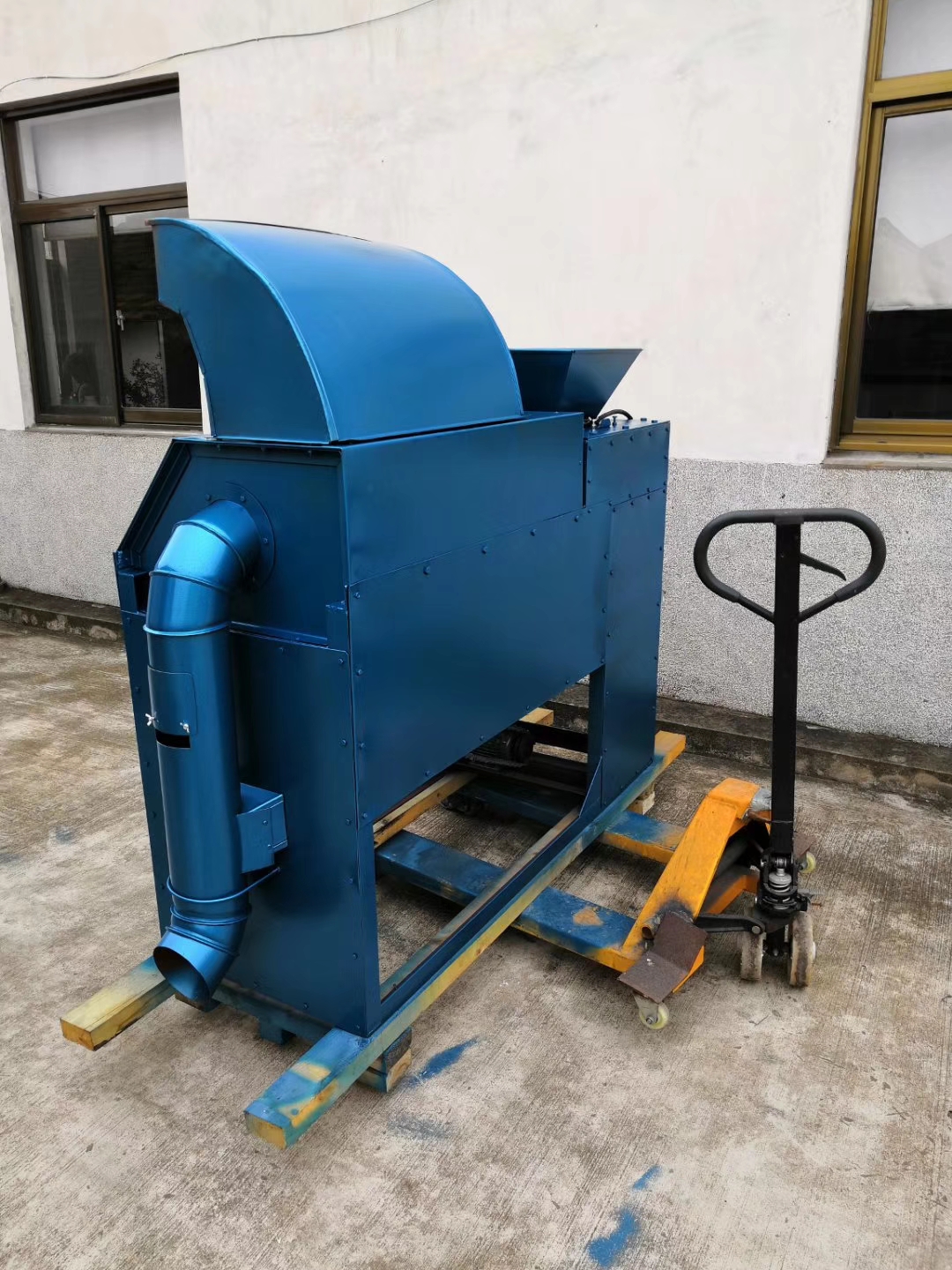

·This is the advanced bean peeling equipment

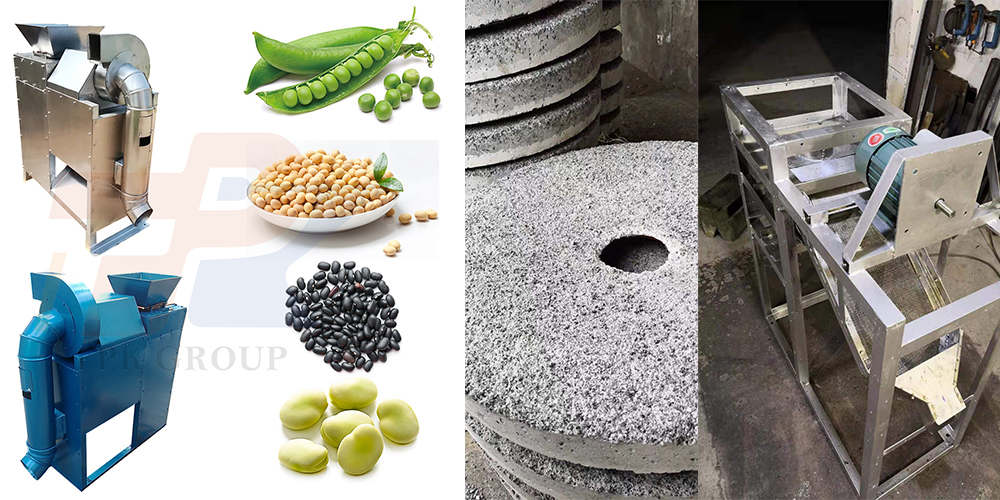

·It can peel all kinds of bean like soybean, pea, horse bean, back soybean and so on.
·According to the sort and size of soybean, we can adjust the space so that the disc life cycle is expanded.
·Service life of grinding disc: handling about 200 tons. Disc material: emery
Product parameter
| Model | TPP-D1 | TPP-D2 | TPP-D3B | TPP-D3C |
| power | 1.5+0.55kw | 3+0.75KW | 5.5+0.75+0.75+0.37kw | 7.5+0.75+0.75+0.37kw |
| Voltage | 380V | 380V | 380V | 380V |
| Peeling disc
diameter |
300mm | 400mm | 500mm | 500mm |
| Peeling Rate | >95% | >95% | >95% | >95% |
| Separating rate(bean and peel) | >98% | >98% | >98% | >98% |
| Capacity | 200-300kg/hr | 500-1000kg/hr | 1000-1500kg/hr | 1500-2000kg/hr |
| Net weight | 150kg | 225kg | 380kg | 420kg |
| Dimension | 1400*400*1300mm | 1500*500*1320mm | 2000 *600*1680mm | 2000 *600*1680mm |
| Moisture | <12-14% | <12-14% | <12-14% | <12-14% |
Product advantage
Service life of grinding disc: handling about 200 tons.
Disc material: emery
