*This machine adopts positive displacement type filling system. It is mainly for packing shampoo, miso soup, sauce, jelly liquid and fat, etc.
*This machine is for food industry, cosmetic industry.
Product description
*The shell and material contact parts are made of stainless steel.
*Suitable for fluid/semi-fluid packaging Can be filled with shampoo, conditioner, laundry detergent, soy sauce, beverages, wine, sauces, etc.
*It can be back-sealed, three-side sealed, four-side sealed, equipped with photoelectric control device to automatically complete bag making, metering, filling, sealing, cutting, counting, printing batch number.
Product parameter
| model | TPP-BL320 | TPP-BL520 |
| Bag length | 50-150mm | 50-300(mm) |
| Bag width | 25-120mm | 70-190(mm) |
| Film width | 60-240mm | 160-380(mm) |
| Packing volume | 5-100ml | 10-300(ml) |
| Packing speed | 30-60bag/min | 30-60(bag/min) |
| power | 1.6kw | 1.6(kw) |
| Air source | 0.65mpa | 0.65(mpa) |
| Air consumption | 150L/min | 180(L/min) |
| Dimension | 760*1380*1700mm | 900×1800×2040(mm) |
| Weight | 300kg | 480(kg) |

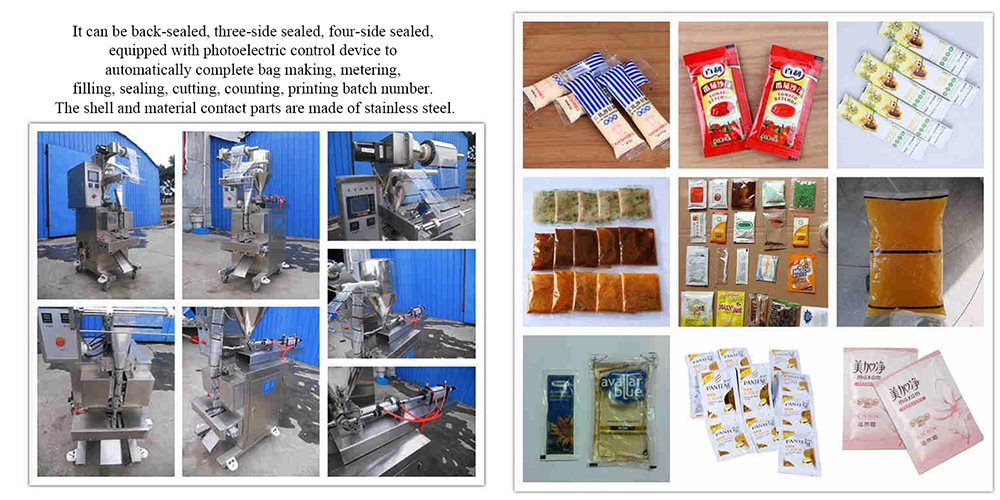

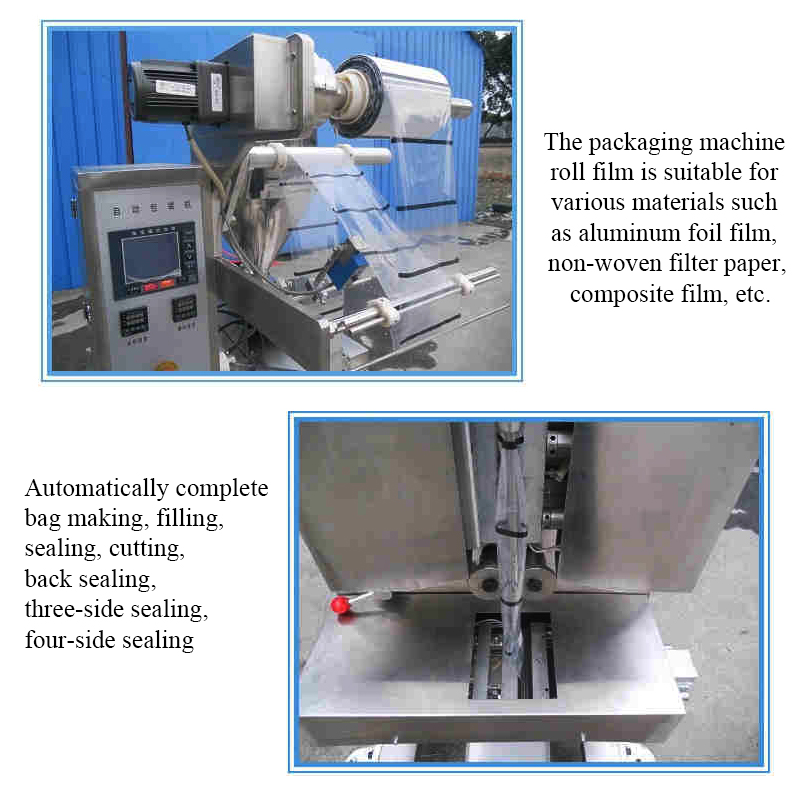

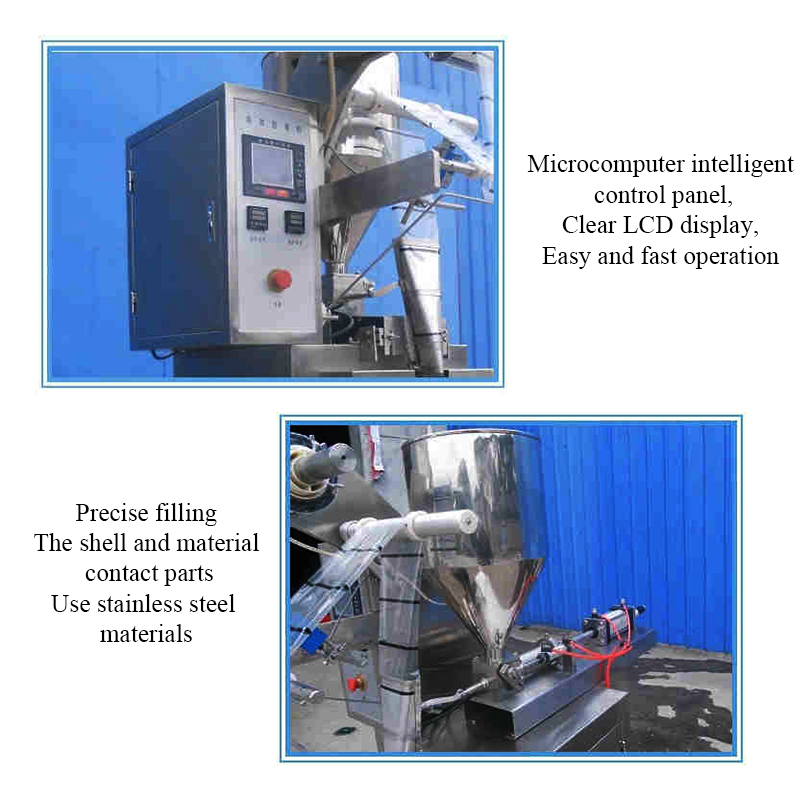

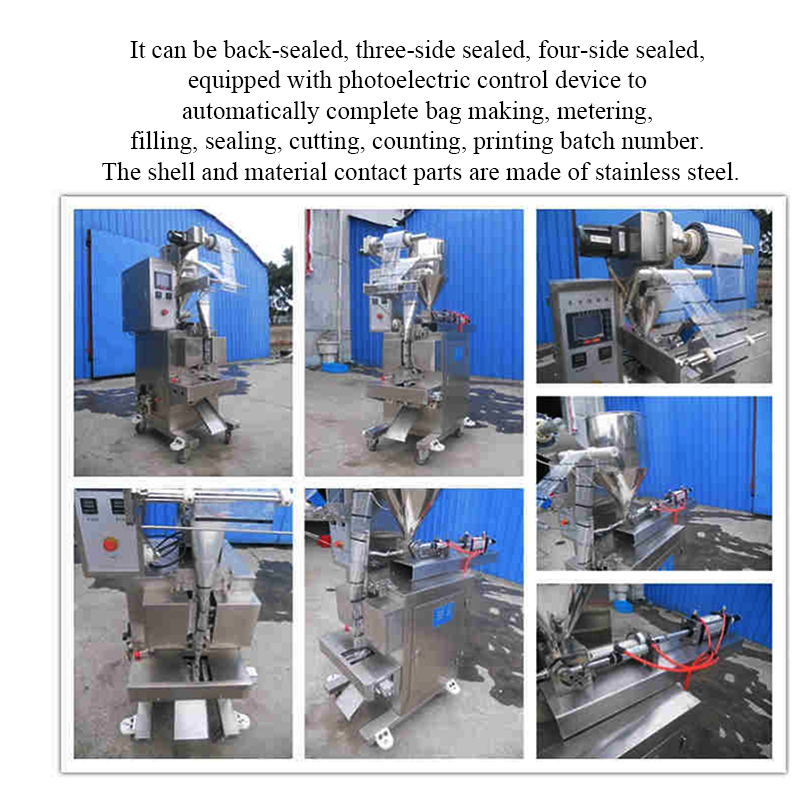

Product picture
