6 head siphon filling machine

Product description


Introduction:

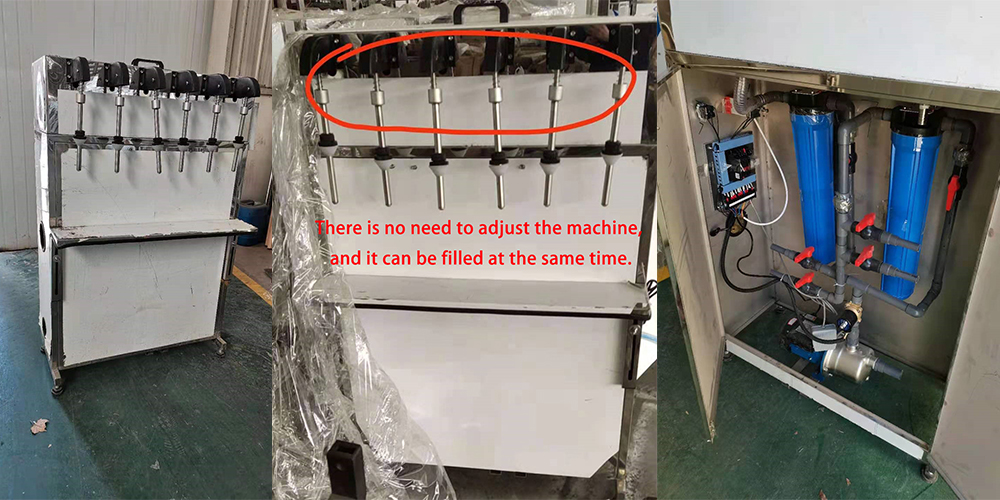

  1. Siphon filling machine can be used for quantitative filling of liquid in all kinds of bottles (including all kinds of special-shaped bottles), especially for a batch of bottles with the same specification, the height error of bottles is within 20mm, so there is no need to adjust the machine, and it can be filled at the same time.
  2. It can be used for bottling all kinds of non-gas liquor, beverage, soy sauce and other liquids.
  3. The semi-automatic red wine filling machine is small in size, light in weight, compact in structure, long in service life, easy to operate and maintain, with low electric power, energy saving and low price.
  4. Equal dividing, constant pressure principle, simple adjustment, easy to master, reliable operation.
  5. Parts of the machine that may contact with the liquid are made of high-quality stainless steel to ensure that the liquid is not contaminated.

Product parameter


Model TPP-HX6
Filling head 6 pieces
Filling scope 200-1000ml
Filling speed About 500bottles per hour
Filling precision ±0.2%
Suitable bottle mouth diameter 10-35mm
Suitable bottle height 100-300mm
dimension 1000*400*1200mm
weight About 120kg

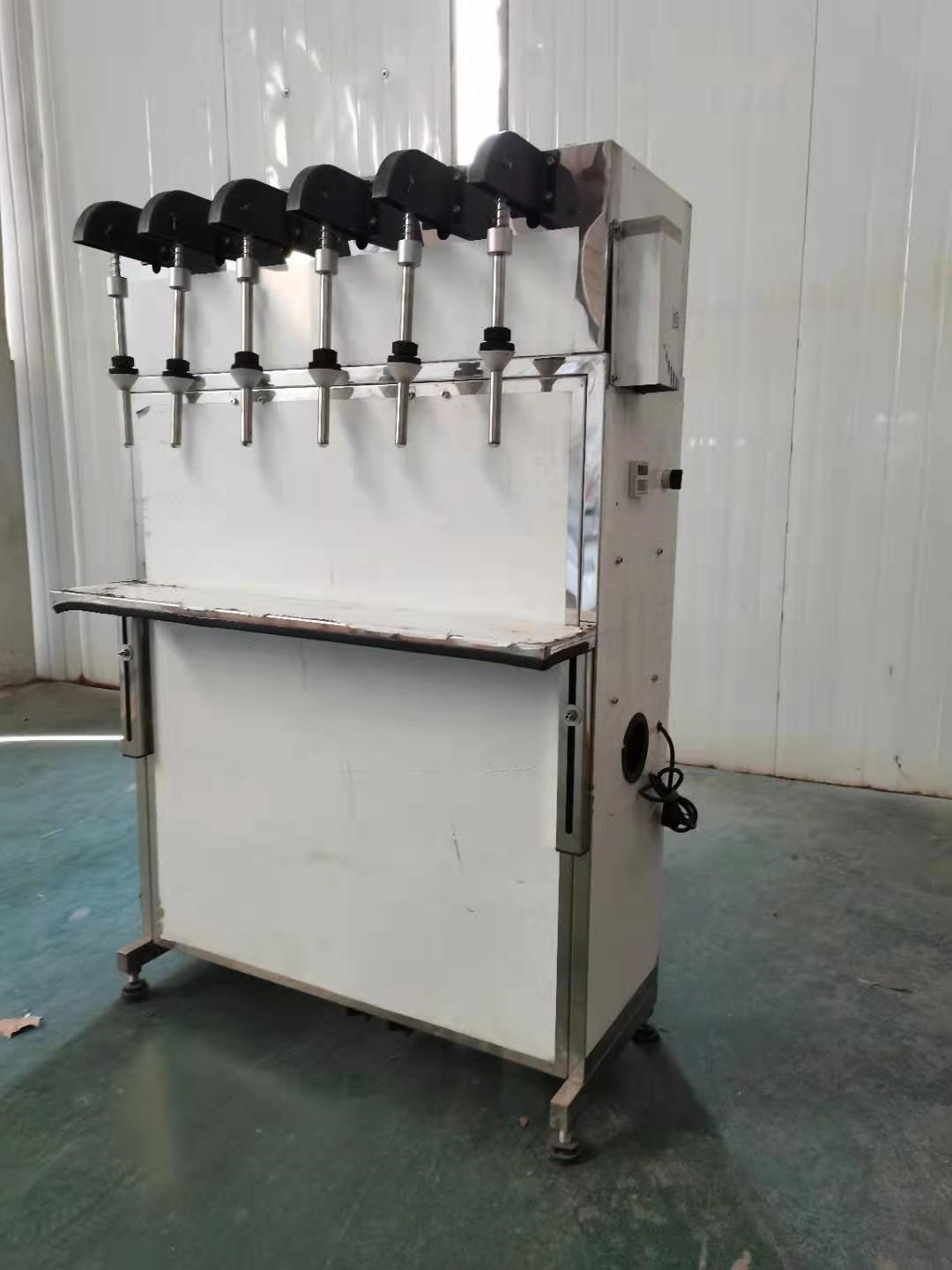

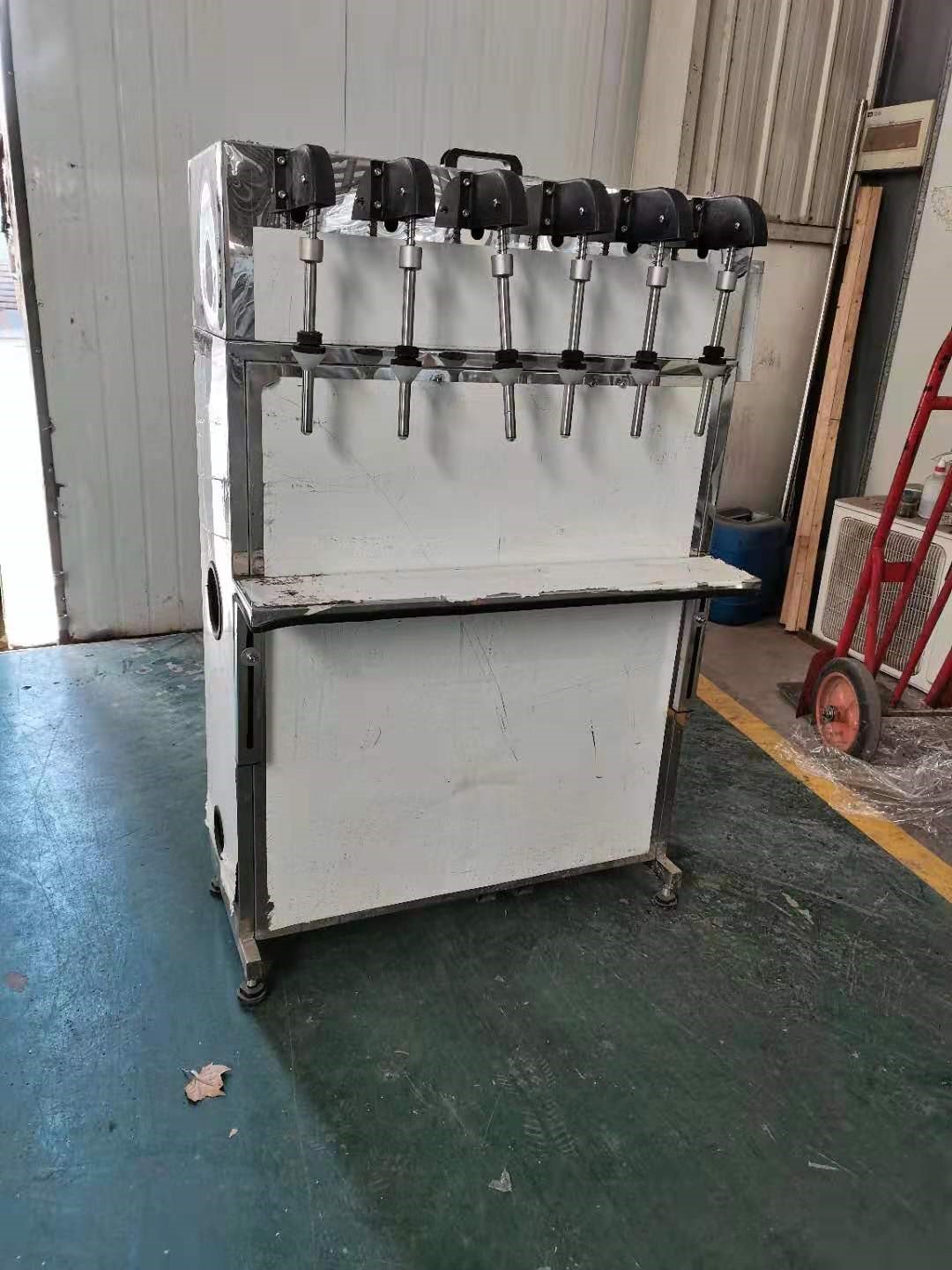

Product picture
